| Place of Origin: | China |
| Nombre de la marca: | Compact IP68 Fiber Optic Closure |
| Certificación: | CE RoHS |
| Model Number: | 2IN2OUT |
| Minimum Order Quantity: | 100 |
|---|---|
| Precio: | USD8.3-USD15.5 |
| Packaging Details: | BOX |
| Delivery Time: | 5-8 WORKING DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000pcs/w |
| Product Type: | Fiber Optic Splice Closure | Fiber Capacity: | 12 or 24 cores |
|---|---|---|---|
| Ingress Protection: | IP68 (Waterproof & Dustproof) | Structure Type: | Inline Type |
| Cable Entry Ports: | 2 Inlets + 2 Outlets (Customizable) | Cable Diameter Range: | Φ5–Φ14 mm |
| Material: | ABS or PC+ABS (UV Resistant) | Mounting Options: | Wall / Pole / Aerial |
| Compatible Cable Types: | Mini ADSS, FTTH Drop Cable, Outdoor Distribution Cable | Operating Temperature: | -40°C to +75°C |
| Dimensions: | 34*16*7(cm) | Standard: | Compliant with IEC 61753 & Telcordia GR-771 |

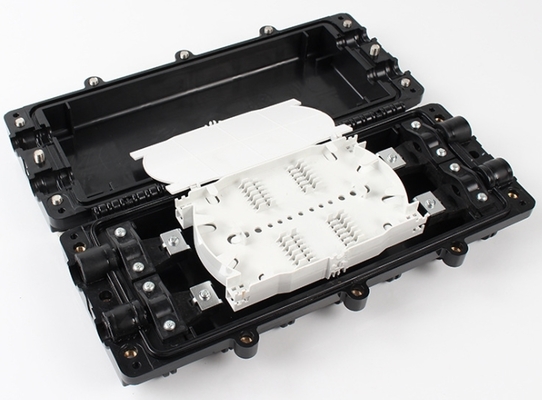

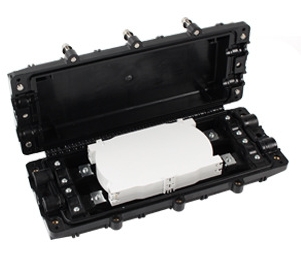

This IP68-rated fiber optic splice closure is designed for reliable protection and easy splicing of fiber cables in both aerial and underground deployments. Suitable for Mini ADSS, FTTH drop cables, and distribution fibers, it supports 12 to 24 cores with secure sealing.
**Key Features**
- ✅ IP68 waterproof and dustproof rating
- ✅ Supports 12/24 core fiber optic splicing
- ✅ Dome type and inline type options available
- ✅ UV-resistant, corrosion-resistant ABS or PC+ABS housing
- ✅ Compact size ideal for FTTH, Mini ADSS, and pole-mounted use
- ✅ Gel sealing or heat-shrink sealing available
- ✅ Quick and tool-free cable fixing with rubber grommets
- ✅ Up to 2 cable inlets + 2 drop cable ports (customizable)
**Applications**
- FTTH overhead and underground installations
- Rural and suburban optical distribution
- Pole-to-pole aerial fiber deployments
- Mini ADSS cable terminations
- Harsh outdoor environments require IP-rated closures
**Specifications**
| Model | CN-IP68-12/24
| Splice Capacity | 12 or 24 cores
| Cable Entry Ports | 2 inlet + 2 outlet (customizable)
| Mounting | Pole / Wall / Aerial Suspension
| Material | ABS or PC+ABS (UV-resistant)
| Sealing Type | Gel / Heat-shrink
| Dimensions | 34*16*7(cm) (typical)
| Weight | ~0.85 kg
**Why Choose CROWNNETCOM?**
We provide project-ready kits including fiber optic splice closures, Mini ADSS cables, clamps, and SC/APC fast connectors – everything installers need for fast and reliable deployments.
Need a sample or bulk quote? Contact us now for full technical datasheets and prices.
